Microduct Connectors

Optobit's microduct connector range cover all sizes of straight connectors, end stops, reduce and  gas block connectors. Our design of "cogwheel" type microduct connector cover ensures market leading protection for direct buried applications.

For more information and offers call our office at: +46 (0)8 506 35 110.

MICRODUCT CONNECTORS 3-18MM.jpg

Microduct Connectors 3-22mm

Straight microduct connector with transparent body for visual control when blowing microcable. Connectors can be reused for more than 10 times while still maintaining the same high performance characteristics - operational at 15bar (218 psi) and with quick burst rating of 25bar (363 psi). All connectors have two removable locking clips to prevent tube release.


MICRODUCT END STOPS 3-18MM.jpg

Microduct End stops 3-22mm

To keep microduct networks free of debris, seal the system with push-in end stops. The end stop can be attached and removed more than 10 times while still maintaining the same high performance characteristics - operational at 15bar (218 psi) and with quick burst rating of 25bar (363 psi). All end stops have removable locking clip to prevent tube release.


DSC03324DIRECT BURIED MICRODUCT CONNECTORS 3-18MM

Direct buried MICRODUCT CONNECTORS 5-18MM, IP68

Optobit's high quality microduct connector assembled with TPE covers for sealing and enhanced mechanical protection.  IP68 protection is tested under 3m water column, 30 kPa(0,3bar) > 2000h. Pullstrenght > 200N. All connectors have two removable locking clips to prevent tube release.


DIRECT BURIED MICRODUCT END STOPS 3-18MM.jpg

Direct buried MICRODUCT END STOPS 5-18MM, ip68

Optobit's high quality end stop assembled with TPE covers for sealing and enhanced mechanical protection.  IP68 protection is tested under 3m water column, 30 kPa(0,3bar) > 2000h. Pullstrenght > 200N. All end stops have removable locking clip to prevent tube release


MICRODUCT REDUCER CONNECTORS

MICRODUCT reducer connectors

Reduce connectors with transparent body, allow the connection of two microducts with different  diameters.


MICRODUCT GASBLOKERS 5-18MM.jpg

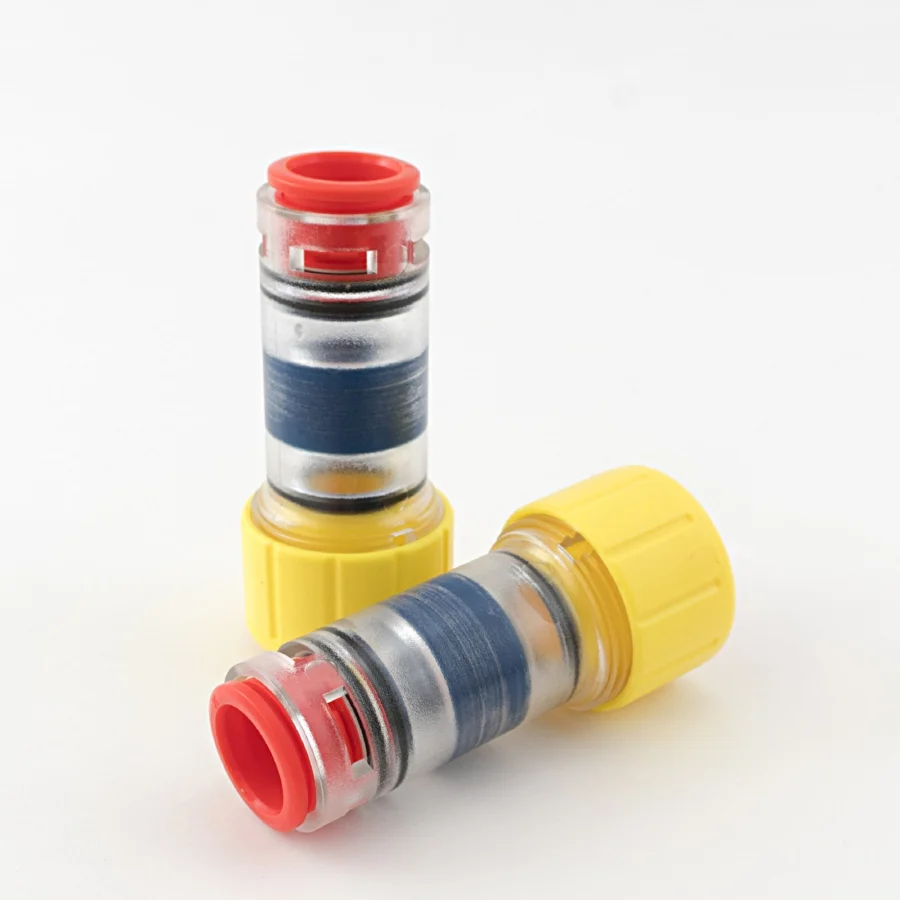

Microduct gas block connectors 5-18mm

Gas block microduct connectors provide compression seal which allows you to blow through a cable and seal it after installation.
